• European Whole Vehicle Type Approval ensures compliance with strict weight, dimensions and safety regulations

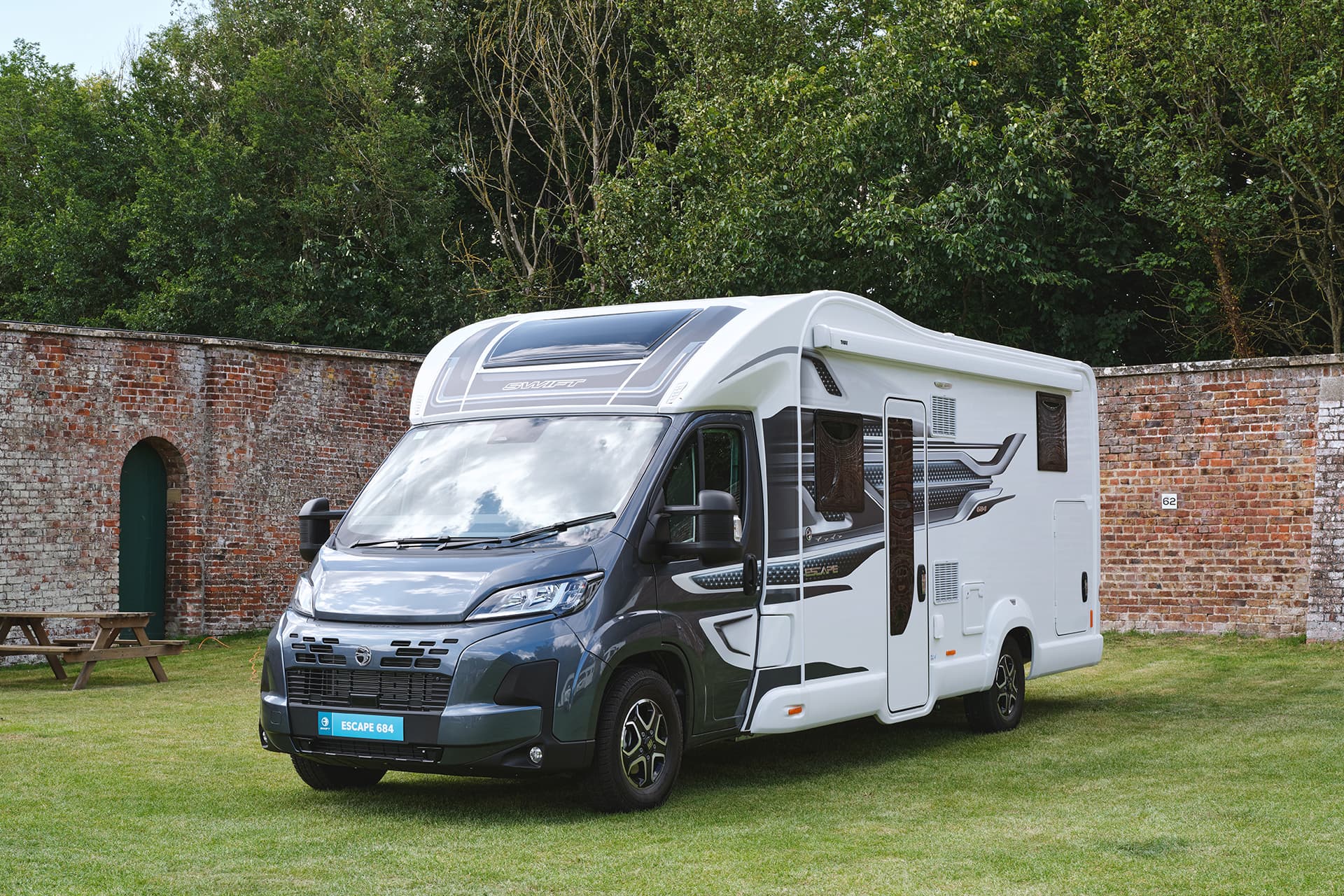

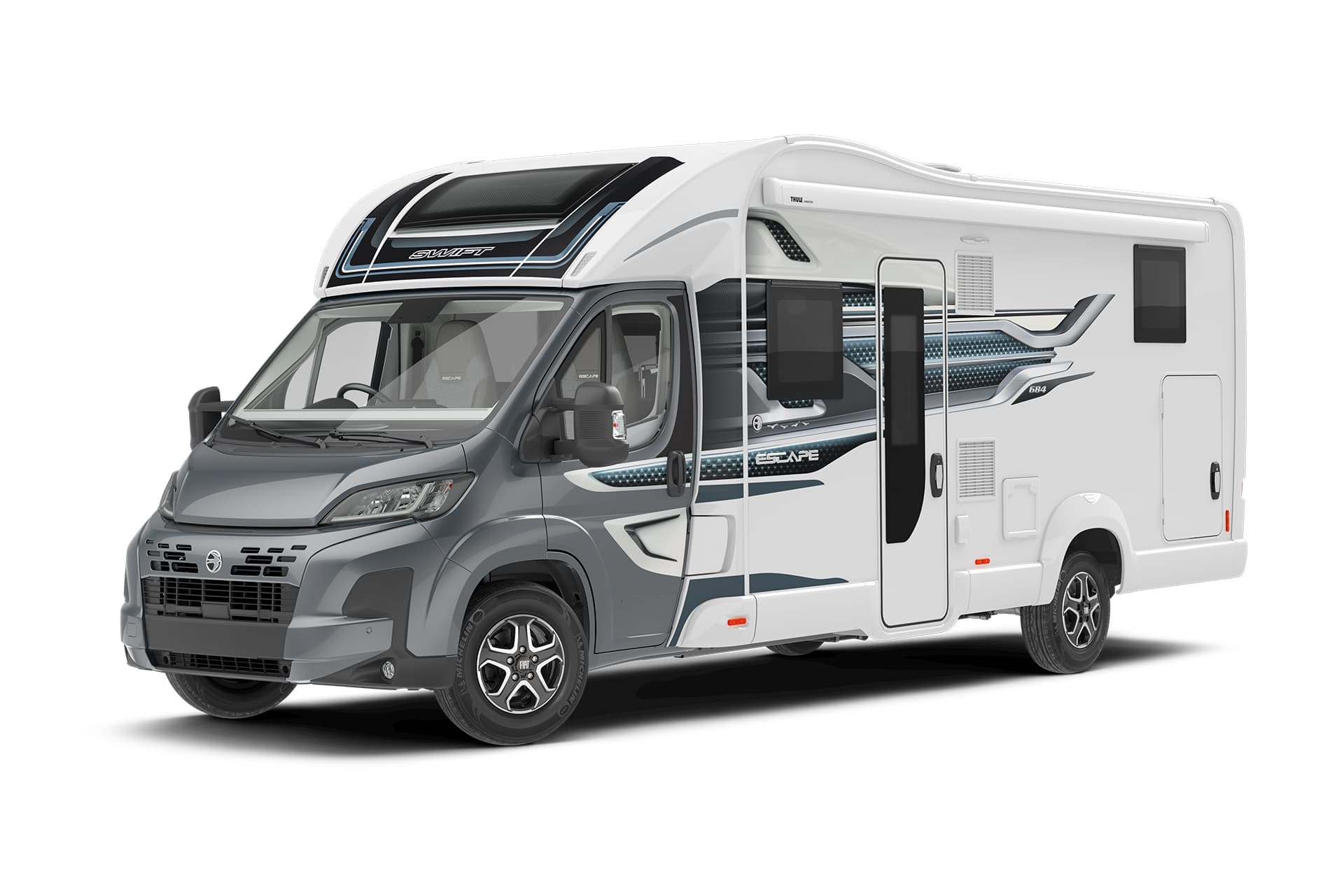

• Fiat chassis cab in Iron Grey Metallic, with body coloured grille and bumper
• AL-KO low line chassis conversion with wide rear track
• EN 1646-1 Grade 3 classification for heating and thermal insulation, for sub-zero ambient temperatures, confirmed by cold chamber testing
• Euro 6E 140bhp, 2.2 litre engine with 8-speed automatic gear box and ESC and Eco Pack (180bhp on 674)
  • ESC includes: Traction+ anti-slip regulation (ASR), roll over mitigation (ROM) and hill descent control
  • ECO Pack: stop/start system, smart alternator and more efficient energy saving fuel pump
• 60L fuel tank and AdBlue based after treatment system with 19L tank (90L fuel Tank on 674)
• SMART construction with full GRP bodyshell:
  • Strong, moisture proof ‘PURe’ Polyurethane timberless framed body shell with HD polystyrene insulation core
  • Balanced panel 31mm sandwich side walls with GRP outer and inner skin
  • 44mm ‘sandwich’ floor construction with GRP outer skin, ply upper and high rigidity Styrofoam core
  • 31mm ‘sandwich’ construction hail resistant exterior GRP roof, fully bonded for extra strength and flatness, and GRP inner skin
• GRP front low line pod with opening panoramic sunroof
• White extruded skirts link with full height GRP rear panel
• Distinctive streamlined exterior front profile
• NEW Striking exterior graphics scheme coordinated with cab
• Stylish 16” alloy wheels
• Fix & Go puncture repair kit
• Daytime running lights
• Low energy LED lighting
  • Exclusive front marker lights
  • Side marker lights
  • Exclusive rear light clusters
  • High-level brake light
  • Exterior awning light
• 120W solar panel and regulator
• External cold water shower point
• External BBQ point
• Wide habitation door (600mm) with window, flyscreen, bin, umbrella stand and central locking
• Rear garage with lighting, heating, sockets and access doors on both sides
• Exterior access locker door into bed box (674)
• Provision for 1 x 6kg and 1 x 13kg gas bottles with fitted butane/ propane regulator and propane hose
• Flush fitting, double glazed, tinted acrylic windows with night latch ventilation
• NEW Reversing camera and sensors linked to the 10” entertainment screen
• Heavy duty chassis extensions ready for optional towbar
• Bike rack fixing rails fitted to the rear (except 674)
• NEW Thule T4200 series roll out awning
• MTPLM of 3700kg and cannot be driven on a normal category B driving license (640, 684 and 694)
• MTPLM of 4500kg and cannot be driven on a normal category B driving license (674 only)

• Exclusive dashboard design including:
  • 10” touchscreen HD colour display
  • Fiat Sat Nav with TomTom 3D map visualisation and selectable vehicle dimensions
  • Leather steering wheel with steering wheel controls including volume control and phone compatibility and gear lever with leather gaiter
  • Digital dash and infotainment system
  • Cab light, back lighting & floor lights
  • DAB radio with Apple Carplay™ / Android Auto™, USB and Bluetooth
  • Central area with pocket for smartphone, double USB-C points and cup holders
  • Door pockets with bottle holder
  • Cruise control
  • Driver and passenger airbags
  • Automatic Cab air-conditioning
  • Wireless phone charger
• ABS brakes
• EBD (electronic brake force distribution)
• Immobiliser with rolling code
• Variable power steering
• Electrically adjusted and heated wing mirrors fitted with direction indicators and DAB radio aerial
• Electrically operated and tinted cab windows
• Adjustable headlamp height
• Front fog lights
• Adjustable steering wheel position
• Pleated cab blinds (windscreen and side blinds)
• Removable and bleachable cab carpet
• Driver and passenger captain chairs both with:
  • Position, height and rake adjustment
  • Swivel base
  • Two armrests
  • Integrated headrest
  • Fully upholstered covers
  • Seat base surrounds
• Any van with an MTPLM of 3500kg and below can be driven on a standard Category B Licence, anything above requires a C1 Category.

• NEW ‘Bolonia’ soft furnishing scheme with complementary scatter cushions
• Decorative Sangallo Elm woodgrain detail with complementary Oxford Tajet, Toro Tela and Grau furniture
• Cream gloss upper locker doors with feature inlays
• Fabric covered wall pads
• Grey French Oak effect, high impact, scratch resistant floor
• Sectioned removable and bleachable carpets for flexibility
• Removable stepwell mat
• Entrance doorway feature panel with illuminated grab handle

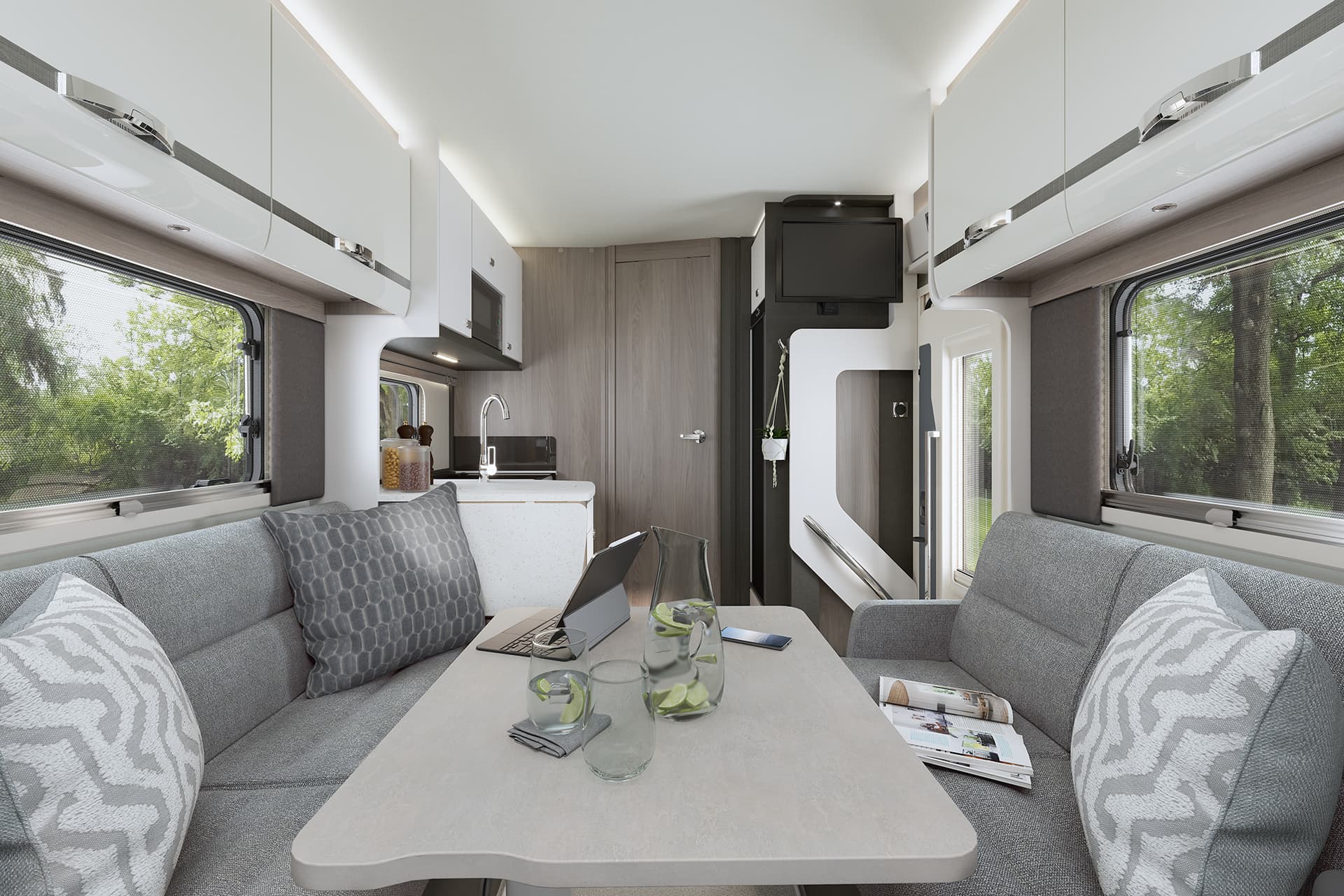

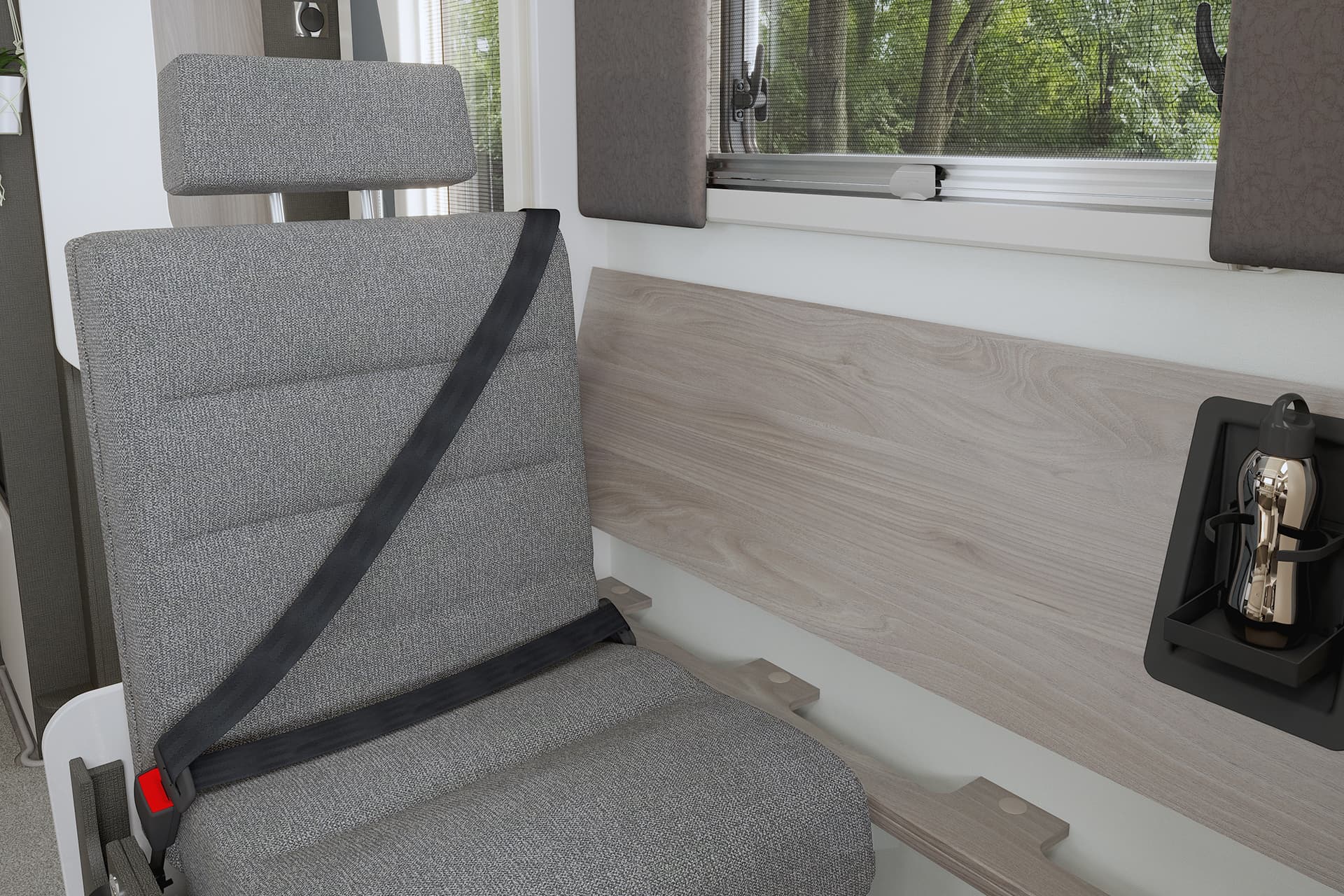

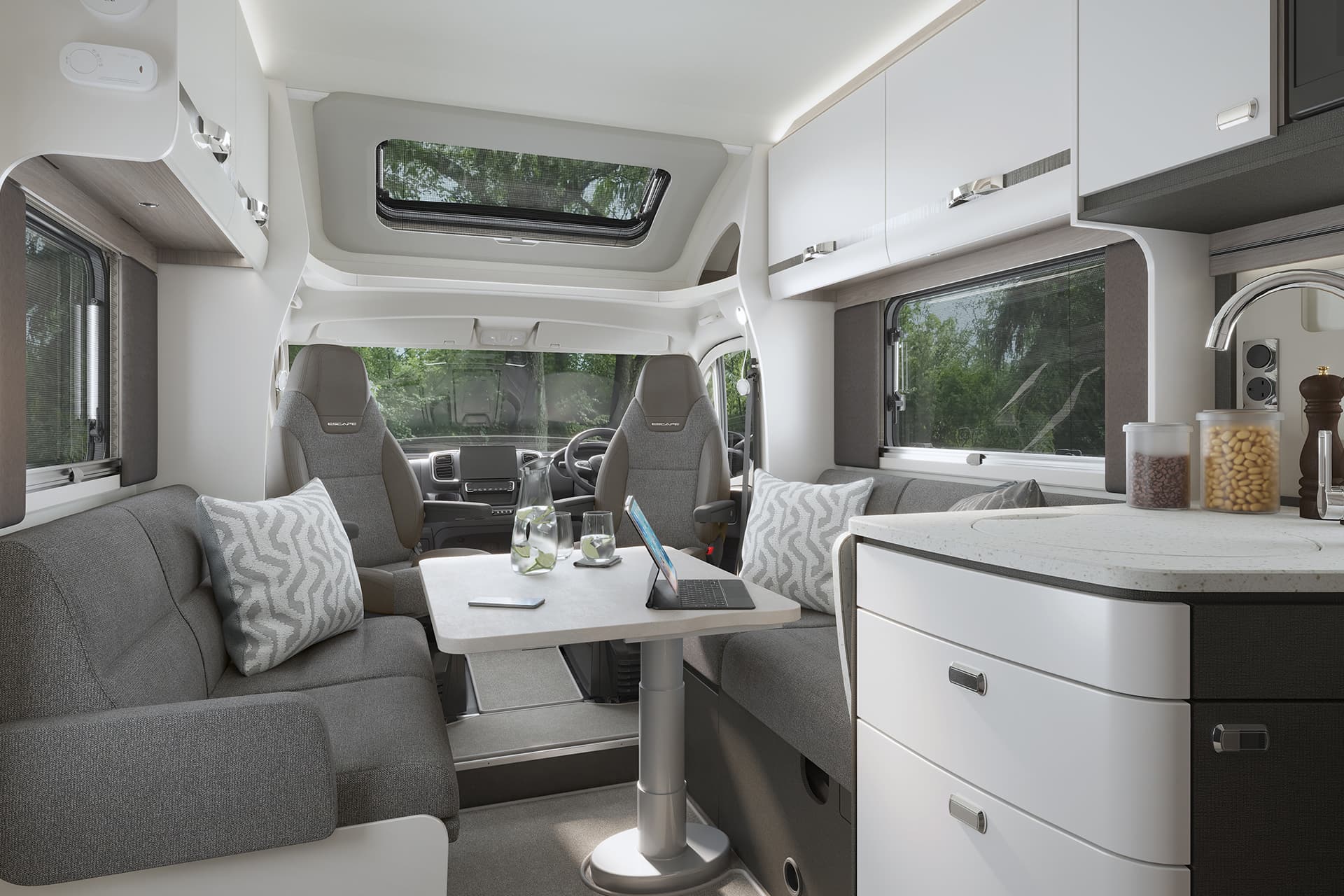

• Front parallel lounge with fold-down Aguti travelling seats incorporating ISOfix (2 x Aguti seats on offside on 674)
• Cup holders accessible when Aguti travelling seats in position
• Lap and diagonal seat belts on all designated passenger seats
• Ergonomically contoured bedding and sumptuous fabrics for increased comfort
• Seat backrest ventilation boards
• Lounge bench seat cushions and bed mattresses supported by beech slats for extra comfort (model specific)

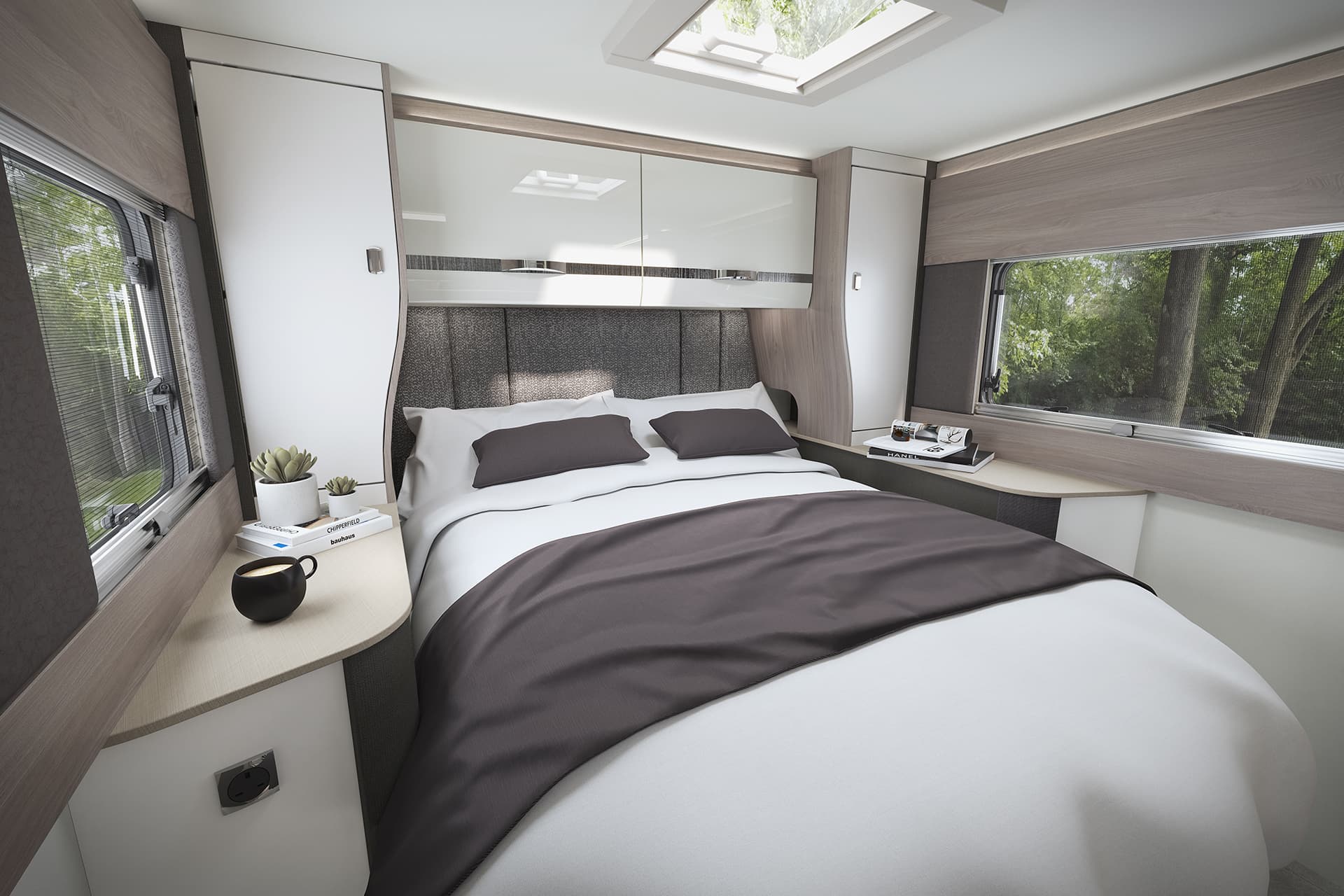

• Exclusive Duvalay Duvalite Alto mattress, which includes a platinum support layer and reflex foam for superior durability, while memory fibre increases airflow for a more comfortable sleep (fixed and drop down beds)
• Bed infill mattress over steps to create additional space (684)
• Positive retention to centre walkthrough door
• sliding doors with latches and locks on bedroom door
• Wide, height adjustable electric drop down bed over front lounge (640 & 674)
• NEW Horrex Honeycomb blackout blinds and Pleated cassette flyscreens on all windows
• Easy action concertina door flyscreen
• High internal roof height of 2110mm

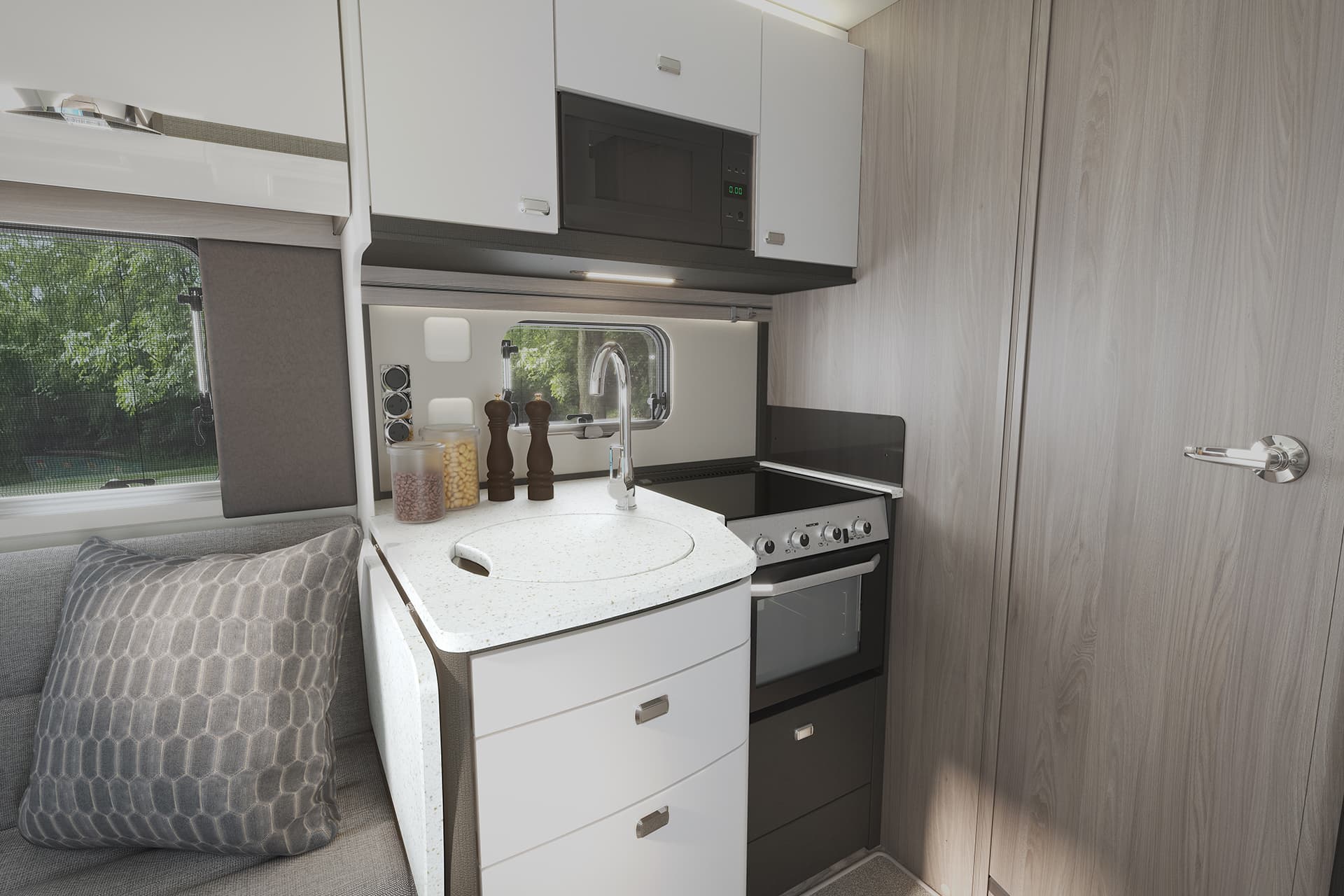

• Thetford Triplex combination oven and grill, plus a three-burner gas hob with electric hotplate, all with electronic ignition. Hob features a glass lid with automatic gas shut-off functionality
• Dometic built-in flatbed microwave with digital controls

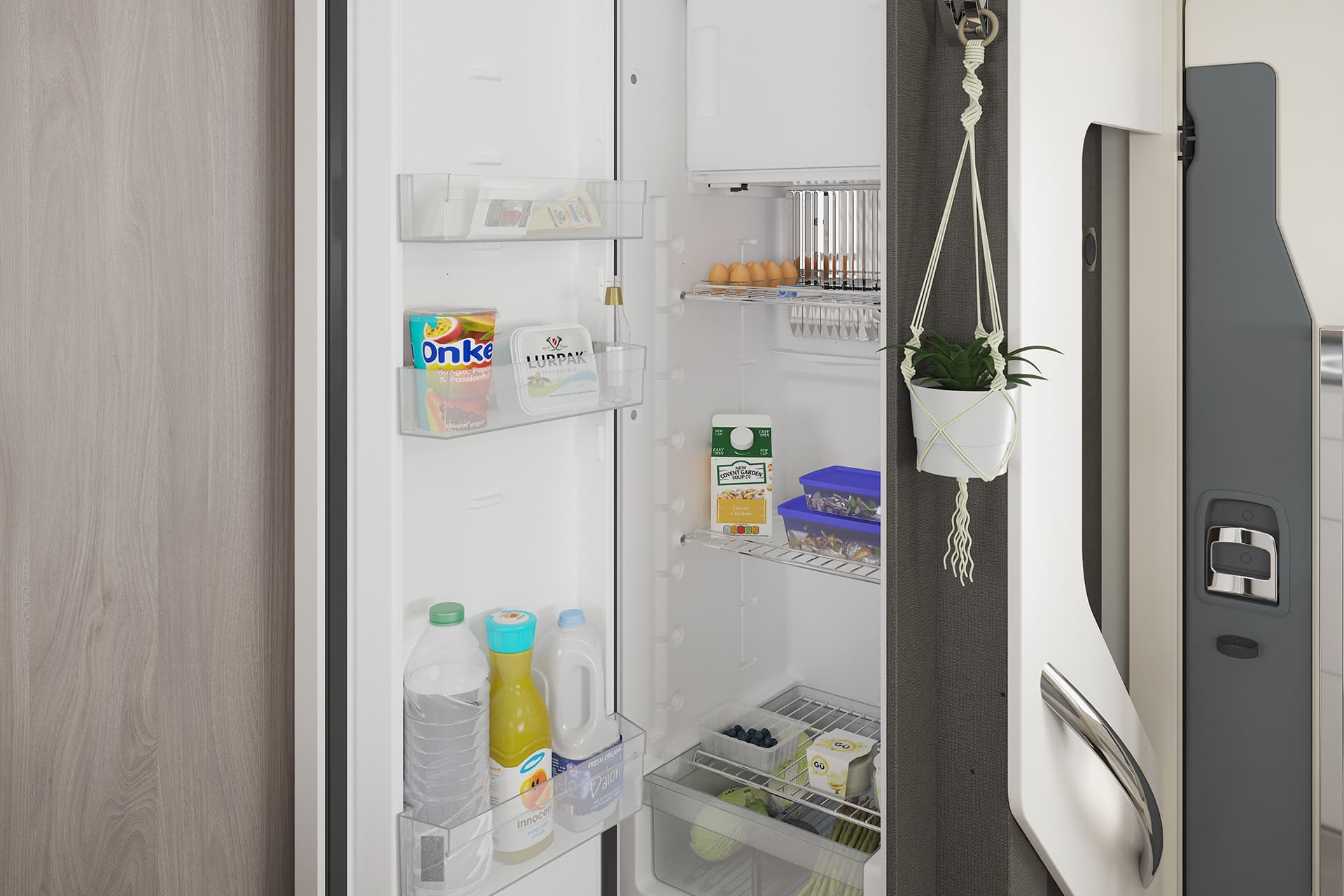

• Dometic (Series 10) 133 litre, tall slimline, dual hinged, automatic energy selection fridge with 230V, gas and 12V operation incorporating 12 litre removable freezer compartment
• NEW Miracle Vanilla Solid Surface kitchen worktop with under top mounted stainless steel sink for greater work surface space
• Washing up bowl
• L-shaped sink unit with foldaway kitchen worktop extension and soft close drawers for additional storage space
• ‘swan-neck’ kitchen mixer tap
• NEW Illuminated Angora Grey laminate kitchen splashback
• NEW storage pockets and utensil rack providing increased storage
• Mapa electric rise and fall table
• Pull-out occasional table in rear lounge (674 only)
• Kitchen rooflight with flyscreen and blind

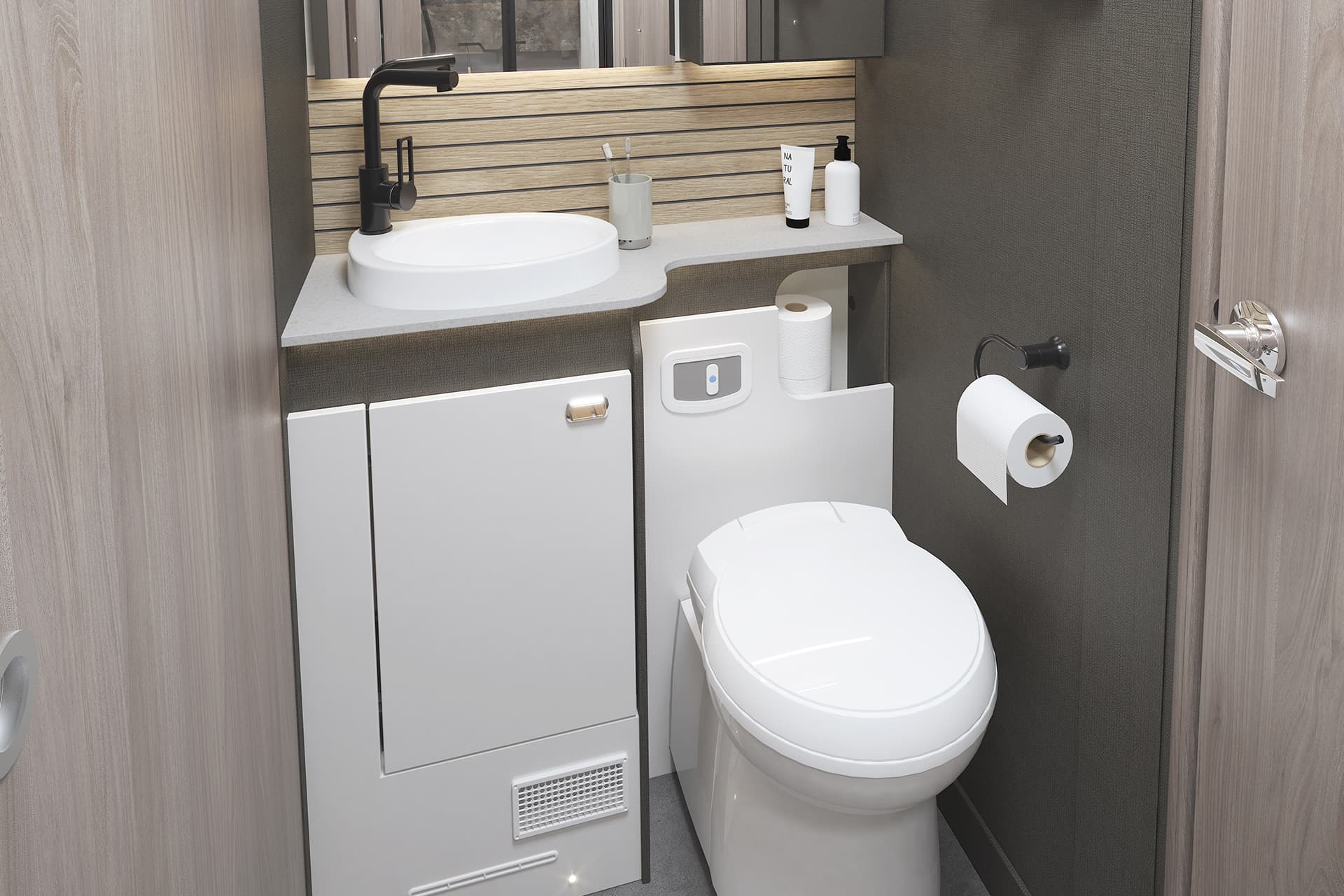

• Washroom design with vanity unit, sink, toilet and separate shower
• Dedicated shower cubicle with shower mixer tap, riser bar, soap dish and integrated storage shelf for toiletries
• Illuminated decorative shower wall panel
• Ecocamel Jetstorm showerhead with on/off button for a powerful shower that uses less water
• Shower tray duckboard
• White Stipple effect wallboard in shower with Provenza Toned Grey floor vinyl on raised floor in vanity area
• Gloss white vanity bowl with upper and lower storage cupboards, mirror and NEW black washroom fittings
• Thetford cassette toilet with electric flush and 18 litre wheeled tank
• Micro-Heki skylight with flyscreen in washroom
• Fold-down shower garment rail
• 32mm thick entrance door with domestic style mortice lock and handle (except 640, which has a tambour door)

• Positive locker catches throughout for secure storage on the move with chrome handles
• Spring-assisted lounge seats and bed tops for easy storage access (except travelling seats)
• Pan storage drawers underneath oven and fridge

• Control system with 4” LCD colour touchscreen panel featuring;
  • Simple controls for monitoring and managing:
    • Power
    • Battery selection, battery level meter and power usage
    • Selected lighting control with soft-start dimming
    • Water, tank levels and control related features such as pump control
    • Environment monitoring with internal and external temperature and internal humidity levels
    • Alde dual fuel radiator central heating and water heating with daily programming

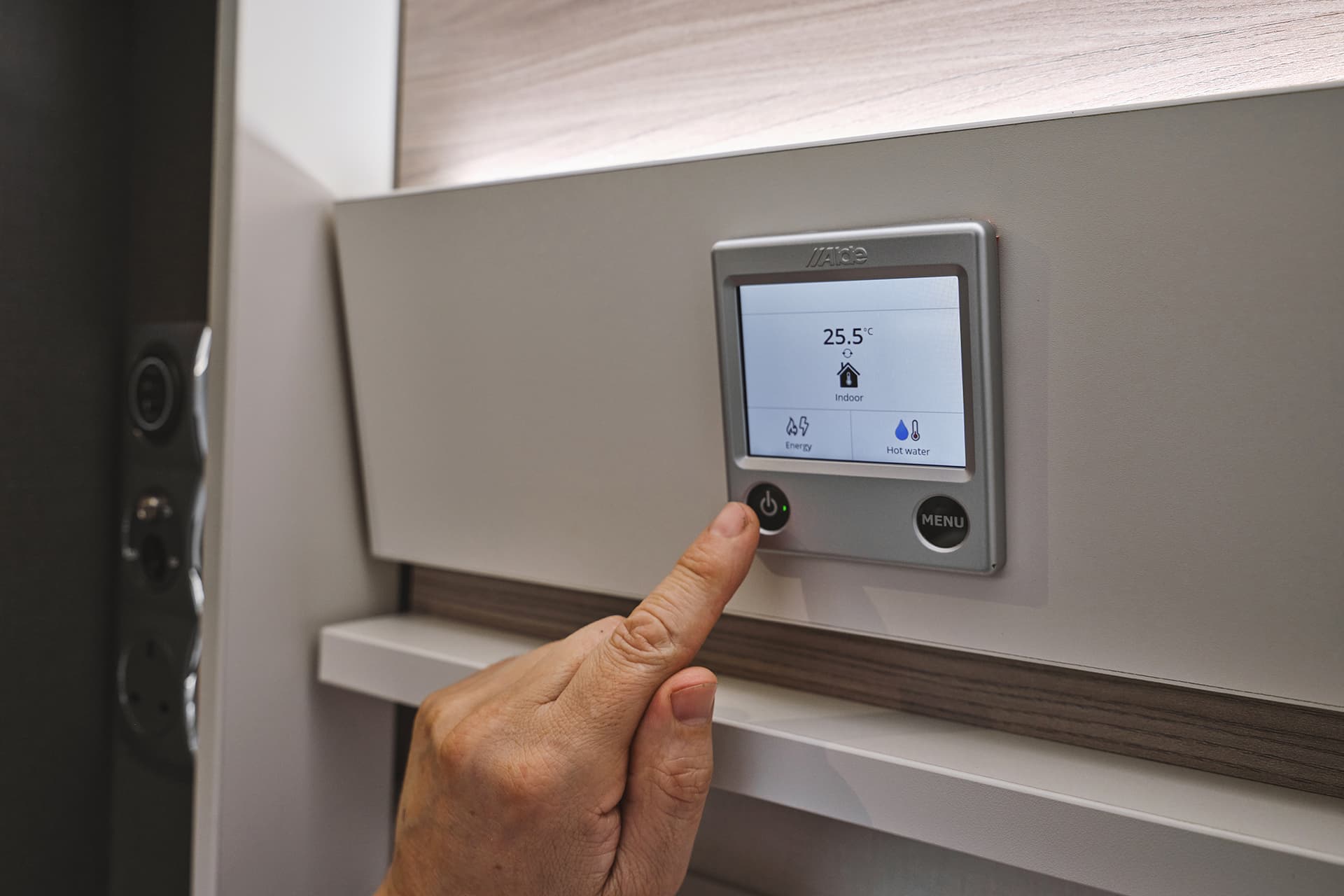

• Alde LCD control panel with 1kW, 2kW or 3kW settings
• Alde circulation pump with 5 speed settings
• Zonal control of Alde heating (except 640)
• Truma ‘Crash Sensor Mono’ regulator for en-route use of heating and water heating
• Pressurised fresh water system with self-priming pump and accumulator
• 12V exterior power point for pump filling of water tank (pump not supplied)
• 110 litre underfloor mounted fresh water tank with level sensor
• 85 litre underfloor mounted waste water tank with level sensor
• Manually operated drain valves on fresh and waste water tanks
• Winter Pack with waste water tank heater with en-route heating to keep defrosted, insulated drain valve covers and fridge vent covers
• Fully sealed, long life, 80 Amp-hour (Dir 2006/66/EC) leisure battery below driver’s seat
• Mains 230V supply, via easy-access consumer unit, to sockets, fridge, heater, water heater and battery charger/transformer
• 25 metre mains hook-up cable
• 25 Amp/300 Watt charger/transformer for leisure batteries
• Ultra-low energy LED lighting system:
  • Downlights
  • Over-locker ambient lighting
  • Adjustable cab reading lights
  • Strip lighting in china locker
• A minimum of four 230V chrome sockets
• Dedicated USB-C points including under-locker USB-C points
• USB-A point for rear passenger travelling seats for use en-route
• Status 570 TV aerial
• TV points with 230V and 12V sockets and aerial socket

• VIN CHIP™ identification system concealed within construction to deter theft and aid quick recovery
• Single key for all habitation doors
• Key fob operated remote central locking of cab doors and habitation door
• Smoke alarm
• Carbon monoxide alarm

• Manufacturer backed 10 year bodyshell warranty

Factory fit

• Detachable homologated tow bar and electrics
• NEW Ultra-leather® Lentil soft furnishing scheme with complementary scatter cushions

Dealer fit

• Thule Elite G2 two cycle rack* (except 674)

*Dependent on model, visibility through rear camera may be reduced when bicycles are carried on the optional bike carrier
