• European Whole Vehicle Type Approval ensures compliance with strict weight, dimension and safety regulations
• AL-KO galvanised steel chassis with Euro-axle
• Overall body width 2.45m/8’0”
• EN1645 Grade 3 classification for heating and thermal insulation confirmed by cold chamber testing
• SMART construction with GRP body panels:
  • Strong, moisture proof ‘PURe’ polyurethane timber-less framed body shell with polystyrene insulation core (25mm in sidewalls, 32mm in roof)
  • Robust balanced panel side walls with GRP outer and inner skin
  • 44mm ‘sandwich’ floor construction with GRP outer skin, ply upper and high rigidity Ravatherm core
  • Hail resistant exterior GRP roof, fully bonded for extra strength and flatness
  • Sweeping front panel in GRP with triple flush fitting opening windows and exclusive LED front marker lights
• Full height GRP rear panel
• Streamlined aerodynamic profile
• Contrasting grey GRP sidewall with NEW stylish exterior graphics scheme including front panel graphic detail
• Exclusive LED rear light clusters, LED high level marker and brake light which provide better visibility in poor weather
• LED side marker running lights
• LED awning light with key fob control
• Offside LED awning light
• Surface mounted impact resistant skirt system
• 15” half diamond cut Edge alloy wheels
• Steel spare wheel
• Wheel lock(s)
• Heavy duty corner steadies
• Rain guards
• High tyre rating - a load margin is included in the tyre specifications
• High quality jockey wheel
• 13-pin Jaeger 12V car connector
• AL-KO Euro overrun device with two-way assisted handbrake
• AL-KO carabiner breakaway cable
• Shock absorbers for a smoother towing experience
• Black step-on hitch cover for easy cleaning of front windows
• Chrome effect two part grab handles to front and rear
• 120W roof mounted solar panel
• Aerial point in battery box for portable satellite dish connection
• 230V mains socket
• BBQ point and connector
• Cold water shower point
• Exterior access battery box with mains electric inlet (battery not included)
• External service doors - access under nearside front bed and NEW larger access door under fixed beds (model specific)
• Carbon effect easy access gas locker door with two compression locks
• Bulkhead mounted regulator suitable for use with either propane or butane bottles
• Fully double-glazed opening windows
• Screen printed windows with graphite grey tint
• Semi-recessed body colour awning rail on both sides

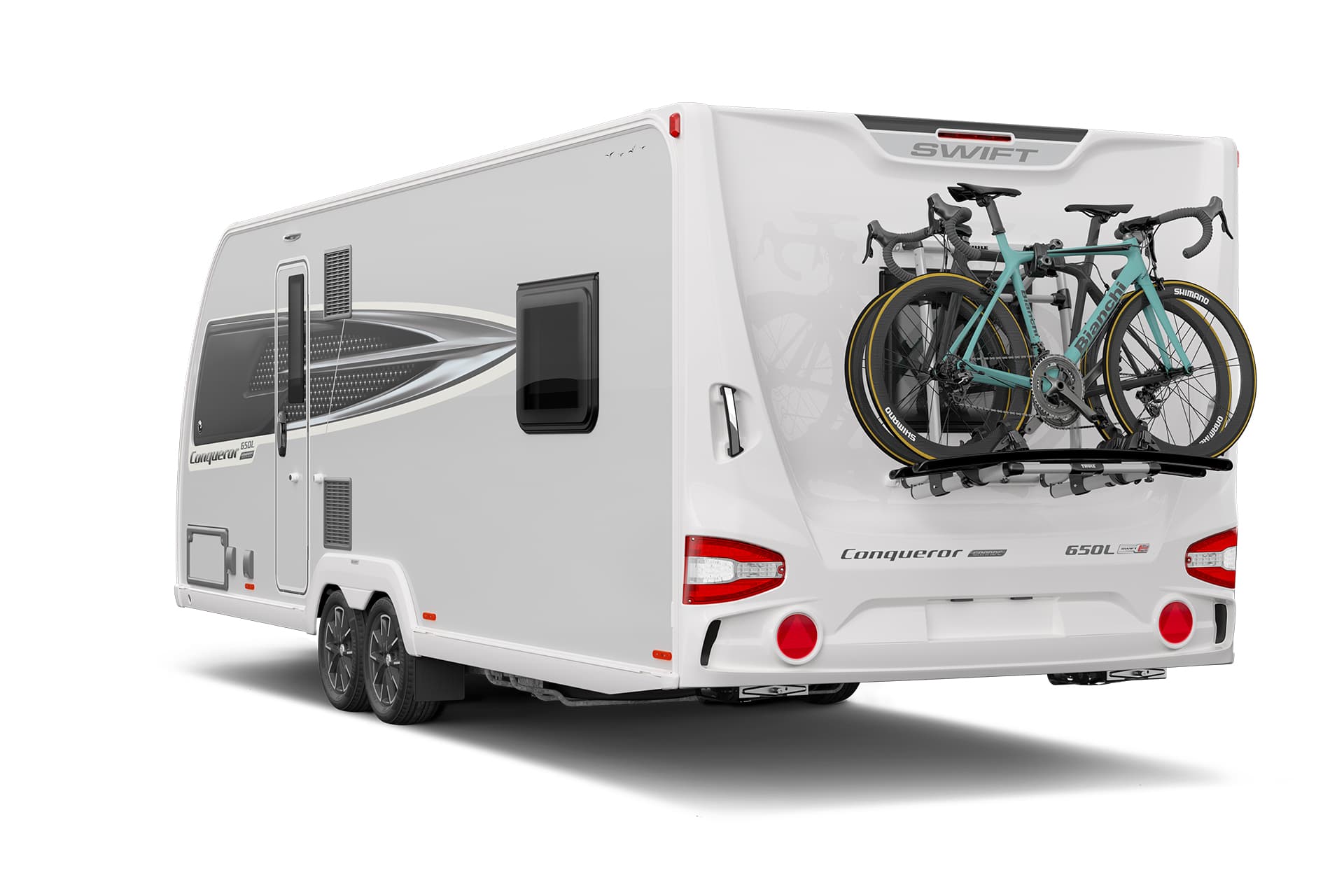

• Fixing bars for optional Thule rear mounted cycle rack (Elite G2)
• Grey exterior one-piece door with magnetic stay, interior moulded liner, chrome handle, window with blind, and bin with dust pan and brush
• Entrance step
• 10 year manufacturer-backed bodyshell warranty

• 1.95m (6’5”) headroom
• NEW ‘Iron’ soft furnishing scheme
• Sangallo Elm woodgrain with Grau and Tora Tela features
• NEW upper locker doors featuring Kashmere with Glido inlay with soft close hinges and improved hinges and catches
• Grey French Oak effect, high impact, scratch resistant floor vinyl
• Large retained embroidered entrance mat

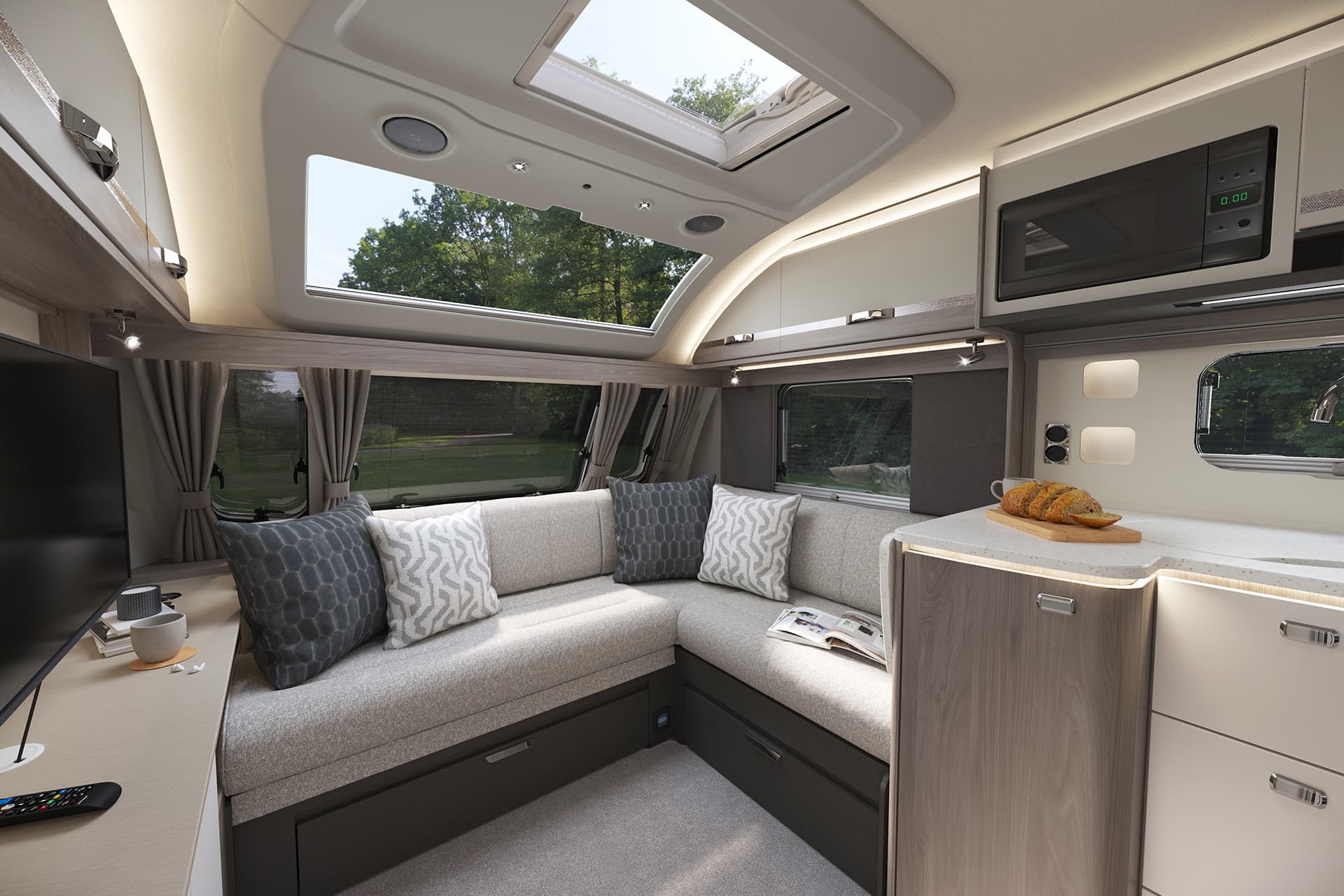

• NEW Dometic panoramic front sunroof incorporating fully integrated curved blind system, recessed lighting and speakers
• Luxury curtains to front windows complemented by stylish wall pads (except washroom and bunk bed areas)
• Twin curtain track for improved hanging and ease of use
• Sectioned removable and bleachable carpets for flexibility
• Four scatter cushions
• NEW sprung seat bases and tri-foam backrests for optimal seating and sleeping comfort
• Seat and backrest ventilation boards
• Higher front lounge backrests

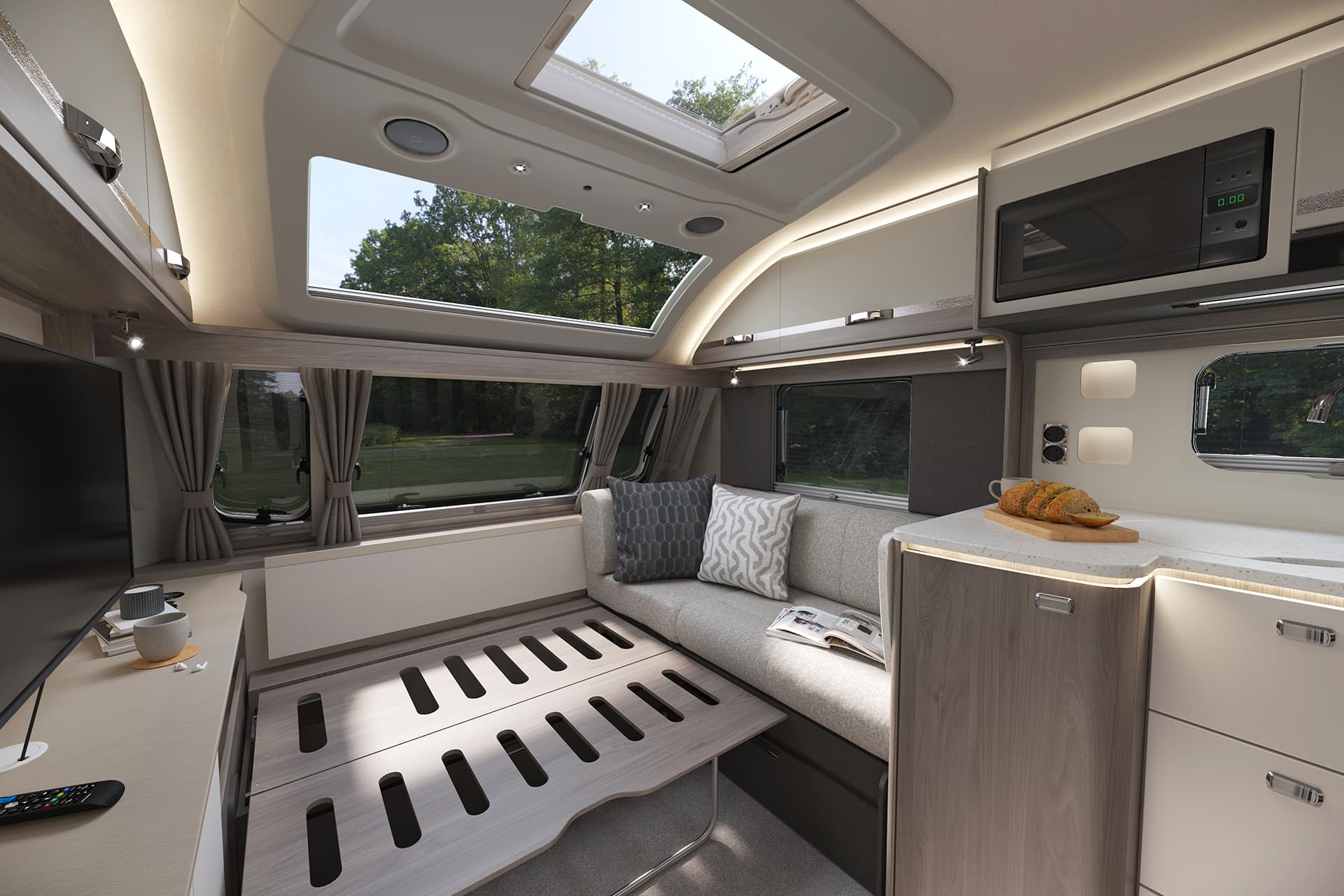

• Beech slat seat and bed bases for extra comfort with sprung hinged tops for easy access
• Bed make-up system with slats retained on track

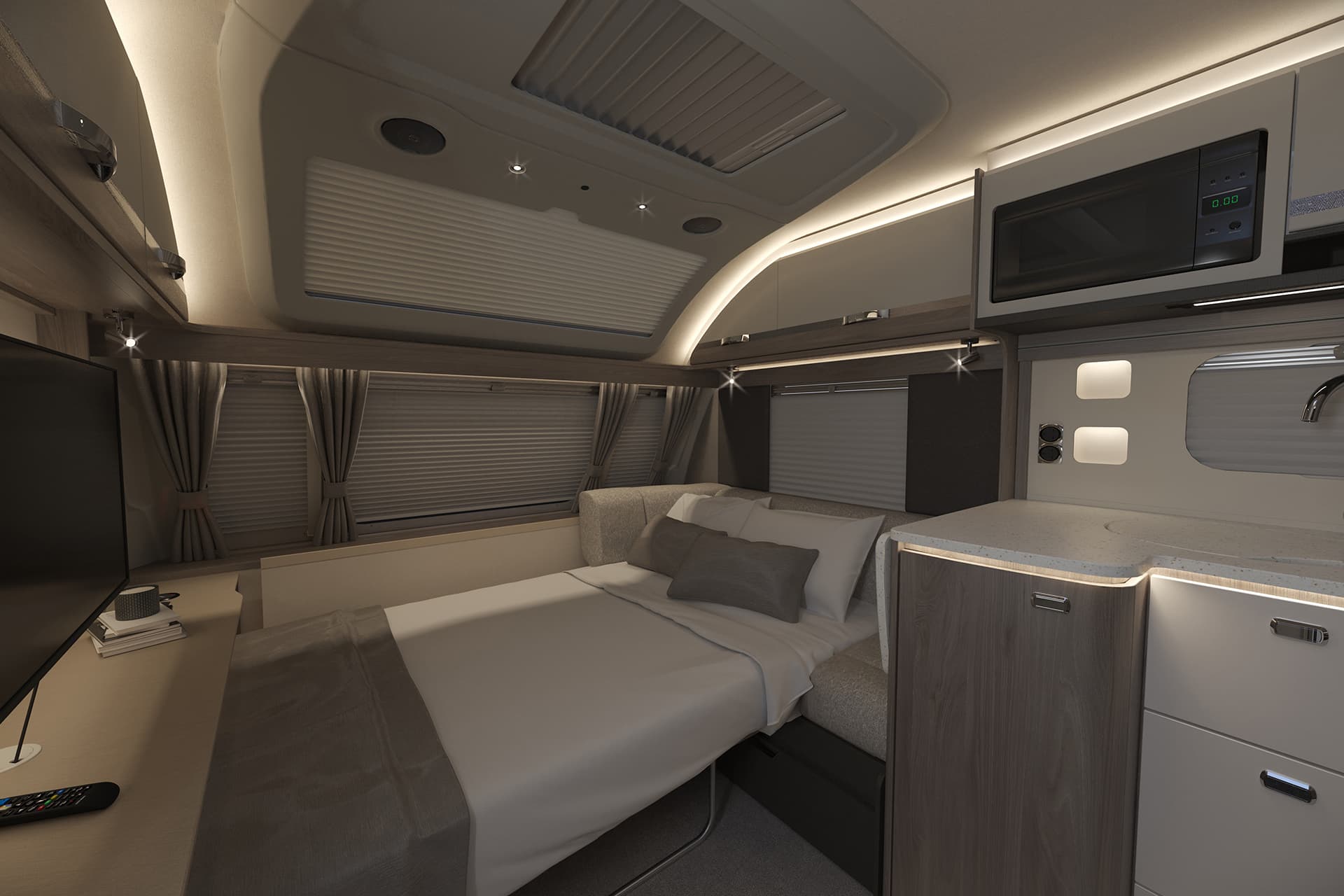

• Easy Accuride bed makeup system on front beds with beech slat seat and bed bases with fully opening hinged tops for extra comfort and easy access
• NEW wider double bed (fixed beds)
• Exclusive Duvalay Duvalite Strato mattress, which includes a platinum support layer and reflex foam for superior durability while memory fibre increases airflow for a more comfortable sleep (fixed beds)
• Aluminium bed frames to maximise strength and storage space with wooden bed surround (fixed beds)
• Full height headboards to fixed beds
• NEW redesigned wardrobes with a contoured shape above the shelf for increased space below and easy access storage pocket at worktop level
• Wardrobes with mirrors (mirrors model specific)
• Midi-Heki rooflight with flyscreen and adjustable concertina blind in lounge
• Mini-Heki rooflights with flyscreens and adjustable concertina blinds in kitchens and bedrooms (model specific)
• Door flyscreen with easy concertina action
• Blinds and flyscreens to all windows

• L-shaped kitchen for increased storage and worktop space
• NEW solid surface kitchen worktop with flush fitting chopping board over the sink to increase workspace
• Thetford thermostatic oven and grill with oven light, plus three-burner gas hob and one electric hot plate, all with electronic ignition. Hob features cast iron frets and a glass lid with auto gas shut-off functionality
• Flatbed ventilated microwave oven with digital controls
• Dual hinged Dometic (Series 10) 133 litre tall slimline fridge with electronic ignition incorporating 12 litre removable freezer compartment
• Extractor fan
• Mini-Heki in kitchen area
• Soft close drawers
• Foldaway kitchen worktop extension
• Durable stainless steel kitchen sink with enhanced chrome effect swivel spout tap and unit
• Washing up bowl
• NEW flush fitting kitchen splashback with utensil hanging space
• NEW two pull-out wire baskets in kitchen cupboard
• Chrome finish crockery rack
• Freestanding table

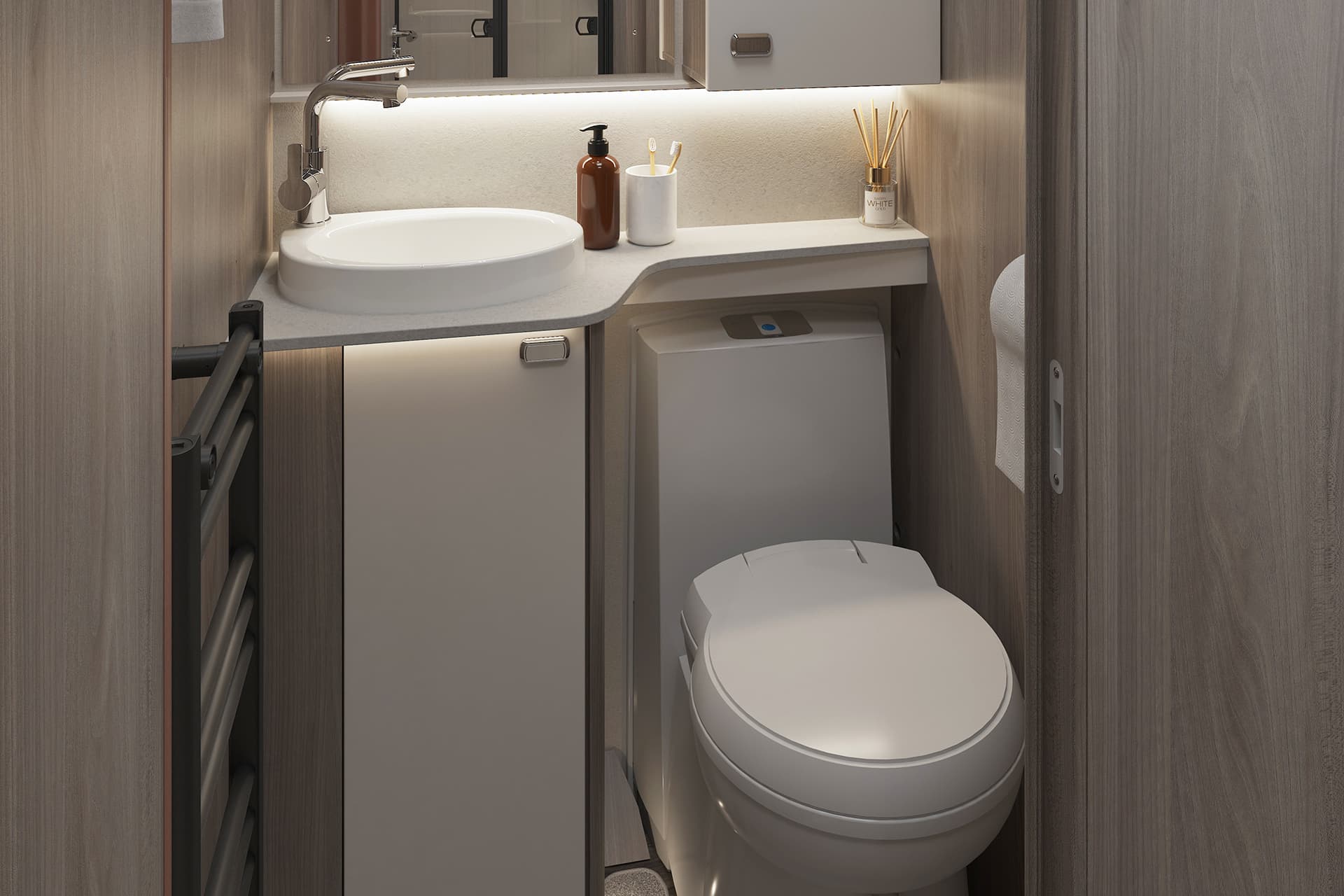

• Updated boutique washroom design with NEW thicker Levato marble-effect work surface, NEW vanity bowl, NEW splashback and additional lighting
• Either a shower bi-fold door retained on track or a single piece shower door
• Ecocamel Jetstorm showerhead with on/off button for a powerful shower that uses less water
• Chrome effect swivel spout vanity tap
• Handleless furniture
• Thetford toilet with electric flush and 18 litre wheeled waste tank
• Removable bleachable washroom carpet
• Midi-Heki rooflight (model specific)
• 31mm thick washroom door with domestic style lock and handle
• Washroom additional towel ring (model specific)
• Washroom shower hanging rail (model specific)
• Towel rail above radiator (model specific)
• Washroom storage shelf (except 650)

• NEW larger luggage door to access rear double bed
• Useful front chest featuring a soft close drawer and convenient slide-out extending top
• Positive overhead locker catches for secure storage on the move with chrome handles
• Upper front corner opening lockers for extra storage
• Seat bases featuring spaceframe construction with full front access and space for larger items
• Washroom storage units
• NEW drawers added under the fridge cabinet, centre of sink unit and inside wardrob

• Control system with 4” LCD colour touchscreen panel featuring;
  • Simple controls for monitoring and managing:
• Power
• Battery selection, battery level meter and power usage
• Selected lighting control with soft-start dimming
• Water, tank levels and control related features such as pump control (twin axles only)
• Environment monitoring with internal and external temperature and internal humidity levels
• Alde radiator central heating and water heating with daily programming with LCD touchscreen control and choice of 1kW, 2kW or 3kW setting
• Digital programmable controller for heating and hot water
• Areas under beds and seats, and washroom areas warmed by Alde perimeter radiators
• Underslung 40 litre fresh water tank (twin axles)
• High flow rate onboard pump with chrome effect taps for reliable, high performance water supply
• Onboard semi-rigid fresh water pipes
• Large bore underslung rigid waste pipes
• Isolation taps for gas appliances
• Fully protected mains electric system
• 25 metre mains hook-up cable
• 25 amp switchmode charger/transformer
• Wireless phone charging pad in lounge
• Low energy LED lighting throughout interior including:
  • Downlights in lounge
  • Under counter lighting in kitchen
  • Over locker lighting
  • Adjustable under locker LED spotlights with USB points
  • Illuminated pelmets above side windows
  • Strip lights above wardrobes
  • NEW atmospheric lighting behind headboard and in washroom
  • NEW low level lighting linked to bedroom and washroom switches
• A minimum of six 230V sockets throughout and a mix of USB A and NEW USB C points for easy charging of portable devices
• Chrome effect socket and switch surrounds
• Branded FM/DAB radio with USB, Bluetooth connectivity and auxiliary input
• Status 570 directional digital / analogue TV/ FM aerial and booster
• Provision for TVs including TV brackets with 230V, 12V and aerial sockets (multiple points in selected models).

• Convenient one-key high security locks
• Dead lock facility on entrance door for added security
• VIN CHIP™ identification system concealed within construction to deter theft and aid quick recovery
• CRiS identity number labels on windows and caravan chassis
• Passive infra-red alarm system with tilt sensor and key fob operation
• AL-KO Automatic Trailer Control (ATC)
• AL-KO Secure wheel lock
• AKS 3004 stabiliser
• Side lift jack and brackets (twin axles)
• Smoke alarm
• Carbon monoxide alarm

• 10 year manufacturer-backed bodyshell warranty

Dealer fit

• Weight plate upgrade (model dependent)
• Roof mounted air conditioning unit (model dependent)
• Thule rail mounted rear cycle rack (Elite G2)
